Classroom Technology in Anderson Center for the Arts

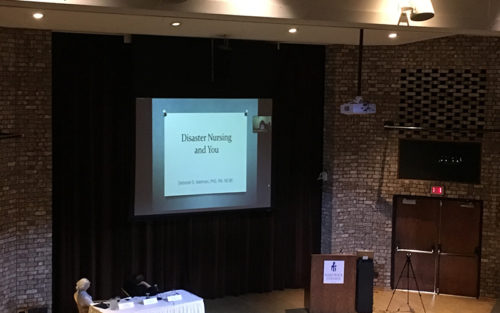

Anderson Theater
Screen: Motorized screen over stage
Projector: Christie LX400
Controller: Crestron DMPS300 – Touch Panels on the lectern and tech booth
Connections: VGA, Composite Video, HDMI, additional computer adapters in lectern and tech booth
Installed media players: Onkyo Blu-ray Player in lectern
Sound: Crown Amps, Sennheiser Wireless Mics, Soundcraft Sound Board
Lighting: Strand 250ML Light Board, LED ellipsoidal and fresnel fixtures

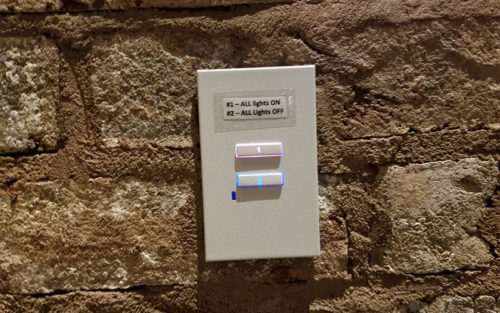

- Simple lighting panels are located through the house of the theater. The top button turns ALL lights on. The bottom button turns ALL lights off.
- Backstage (behind wood doors) there is an extended lighting control panel.
- House lights ON
- House lights OFF
- Movie lighting
- Lecture lighting
- Concert Lighting
- Full Strand ML light board is located in the tech booth.

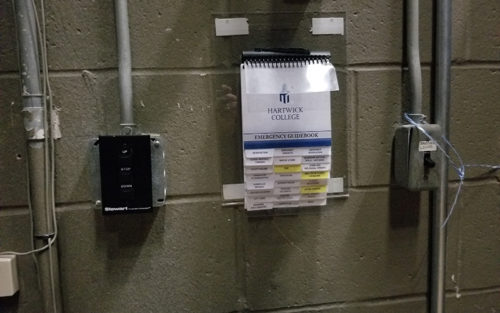

- Backstage right is the controller to raise and lower the screen.

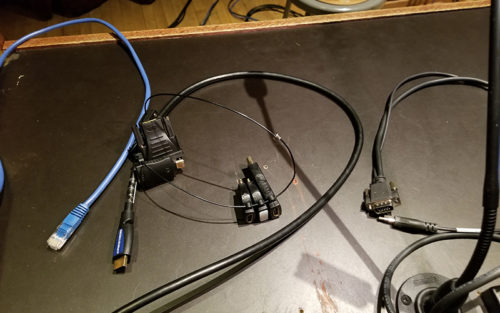

- Cables located on the lectern include: ethernet, VGA with audio, HDMI and a variety of HDMI adapters.

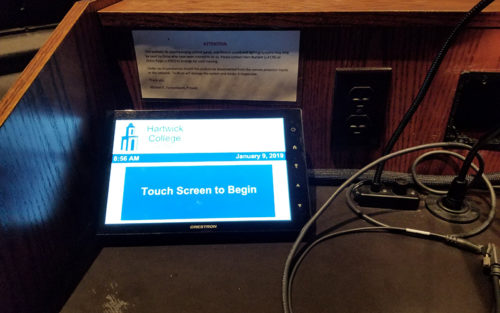

- Plug the appropriate cable into your device and press the touch screen to begin.
- Press “LAPTOP” to turn the projector on and project your computer.
- Leave the Audio Configuration set on “PRESENTATION” for the best sound.
- The “Program” volume control on the top right controls the volume from your computer.
- The “Speech” volume control on the middle right controls the volume from the lectern mic.
- There are additional wireless microphones available as well as advanced audio and lighting control from the tech booth. Please request these services in advance from media@hartwick.edu.
- “BLANK” on the bottom right will blank out the screen without turning off the projector.
- Press “SYSTEM OFF” to shutdown the projector and sound system.
– top of page –
Anderson 138
Screen: Rear projection at front of classroom
Projector: Epson Pro G7400U
Controller: Epson Remote Control
Sound: control volume with Epson remote, wall mounted speakers
Connections: VGA, HDMI
Installed media players: desktop PC, DVD
- Connect either the HDMI or VGA + headphones jack to your laptop. Turn your laptop on.
- Or turn the installed desktop computer on.
- Turn the projector on with the Epson remote – press the “On” button once.
- Inputs:
- COMPUTER = desktop computer.
- BNC = DVD
- HDMI = laptop (use this input for either HDMI or VGA cable on top of the podium)
- LAN = wireless iProjection
- Use the A/V Mute button on the Epson remote to blank and un-blank the screen.
- The Epson remote controls the volume.
- The JVC remote controls the DVD player. Separate volume control for this is located on the amp.
- Epson iProjection is enabled on this projector. Contact Media Services about wireless projection of slides or images – email media@hartwick.edu.
- Turn the projector off with the Epson remote – press the “Standby” button twice.
– top of page –

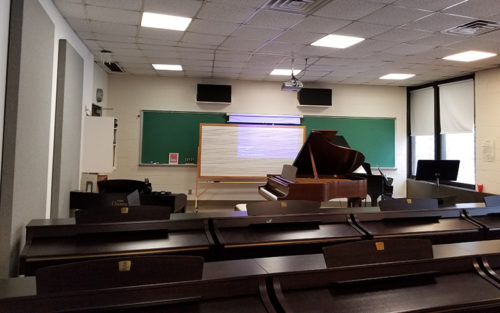

Anderson 206 – Keyboard Lab
Screen: front of classroom
Projector: Epson Powerlite 83c
Controller: Epson projector remote
Sound: Sony amp, wall mounted speakers
Connections: VGA
Installed media players: DVD/VCR
– top of page –
Anderson 207
Screen: front of classroom
Projector: Epson Powerlite 83c
Controller: Epson projector remote
Sound: Onkyo amp, wall mounted speakers
Connections: VGA
Installed media players: DVD/VCR
– top of page –

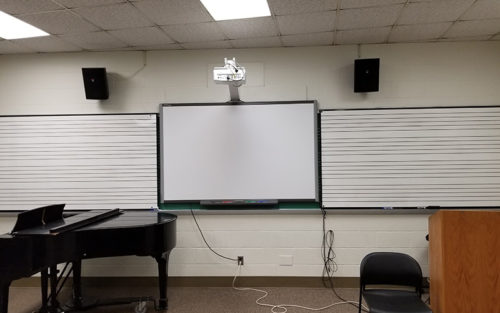

Anderson 209
Screen: Smartboard
Projector: Mitsubishi WD3850U-EST – Smartboard Projector
Controller: Mitsubishi projector remote
Sound: Sony amp, wall mounted speakers
Connections: VGA (HDMI available)
Smartboard: installed but not tested
Installed media players: DVD/VCR, document camera, Numark turntable
– top of page –

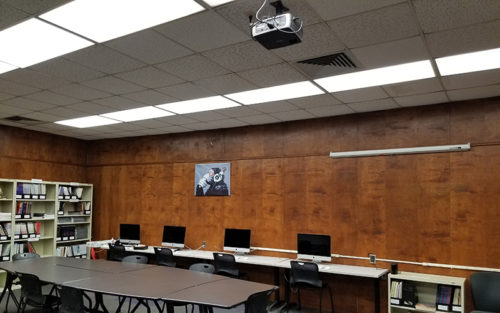

Anderson 221 – Music Technology Lab
Screen: wall
Projector: InFocus IN2102
Controller: InFocus projector remote
Sound: Sony amp, wall mounted speakers
Connections: VGA
Installed media players: DVD/VCR
– top of page –
Anderson 228
Screen: wall in classroom
Projector: Epson Powerlite 83+
Controller: Epson projector remote
Sound: Sony amp, wall mounted speakers
Connections: VGA
Installed media players: none
– top of page –

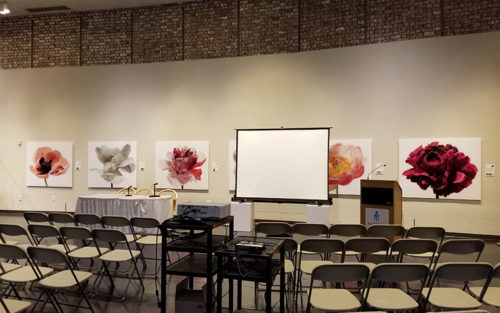

Anderson – Foreman Gallery
Projector: Epson Powerlite 107
Controller: Epson projector remote
Sound: Lectern with mic, Crown amp, Sennheiser wireless mic, Shure mixer, wall mounted speakers
Connections: VGA, HDMI, video (no permanent cables)
Installed media players: none
– top of page –
Media Services provides consultation, design, installation and maintenance services for the College classrooms, meeting rooms, and other learning environments.
Details on these services are available by calling Media Services at 431-4176 or emailing spiwakc@hartwick.edu.
