Classroom Technology in Bresee Hall

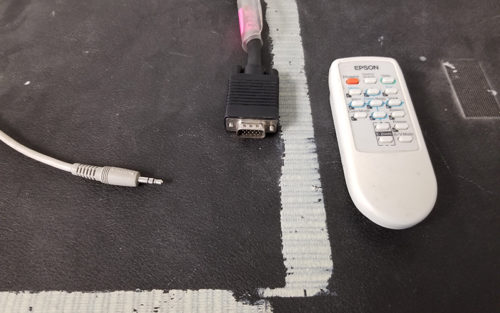

Bresee 206
Screen: front of classroom
Projector: Epson Powerlite 83+
Controller: Epson projector remote
Sound: Teac amp, wall mounted speakers
Connections: VGA
Installed media players: DVD/VCR
- Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
- Plug VGA cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop.
- The amp in the rack controls the audio.
- Turn off the projector by pressing the power button on the remote twice.
– top of page –

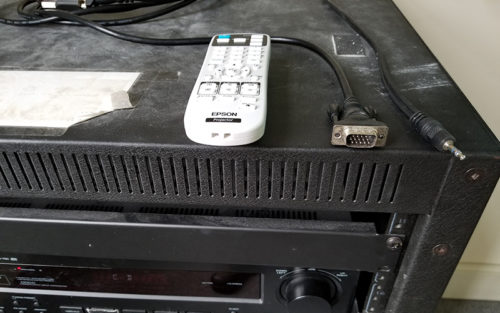

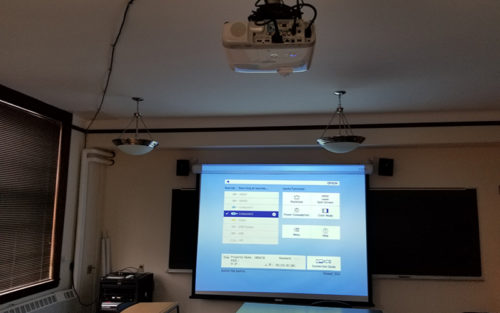

Bresee 208
Screen: front of classroom
Projector: Epson Powerlite 107
Controller: Epson projector remote
Sound: Teac amp, wall mounted speakers
Connections: VGA, HDMI
Installed media players: DVD/VCR
- Turn projector on by pressing the power button on the remote once (blue button, top left of remote).
- Plug VGA or HDMI cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop.
- Press Source Search on the remote to select the input that is connected.
- The amp in the rack controls the audio.
- Turn off the projector by pressing the power button on the remote twice.
– top of page –

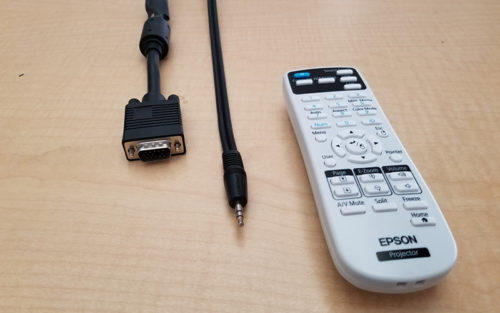

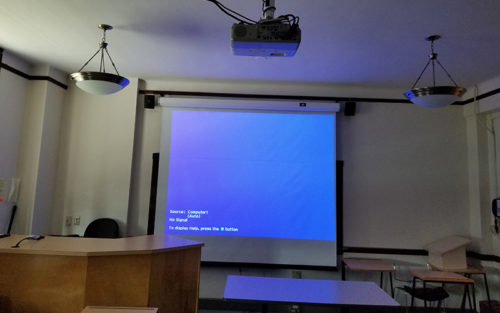

Bresee 209
Screen: front of classroom
Projector: Epson Powerlite 93+
Controller: Epson projector remote
Sound: Sherwood amp, wall mounted speakers
Connections: VGA, (HDMI available)
Installed media players: DVD/VCR
- Turn projector on by pressing the power button on the remote once (blue button, top left of remote).
- Plug VGA cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop.
- The amp in the rack controls the audio.
- Turn off the projector by pressing the power button on the remote twice.
– top of page –

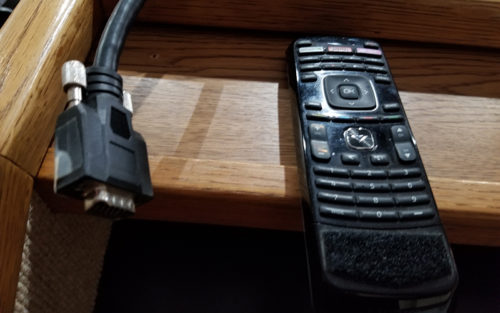

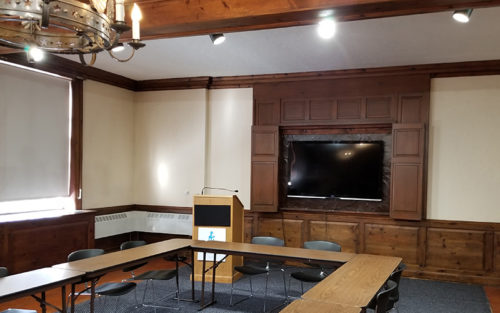

Eaton Lounge
Screen: Vizio Smart TV
Controller: Vizio TV remote
Connections: VGA, HDMI
Audio: Lectern with mic, built-in speaker
Installed media players: none
- Plug either VGA or HDMI cable into the laptop.
- Turn TV on with the remote (button on top right).
- Change Source/Input with the remote (button on the top left)
- Choose “HDMI-Side HDMI-Eaton” for HDMI connection.
- HDMI connection allows audio to be transmitted to the TV. Use the TV remote for volume control.
- Choose “RGB VGA-Eaton” for VGA connection.
- VGA connection does not send audio to the TV. Connect to the cable in the lectern and control the volume on the lectern speaker.
- Turn TV off with the remote.
– top of page –
Media Services provides consultation, design, installation and maintenance services for the College classrooms, meeting rooms, and other learning environments.
Details on these services are available by calling Media Services at 431-4176 or emailing spiwakc@hartwick.edu.
