Dewar Union

Classroom Technology in Dewar Union

Chesebro Room

Chesebro Room

Screen: front of room

Projector: Epson VS330

Controller: Epson projector remote

Sound: Sherwood amp, wall mounted speakers

Connections: VGA, HDMI

Installed media players: DVD/VCR

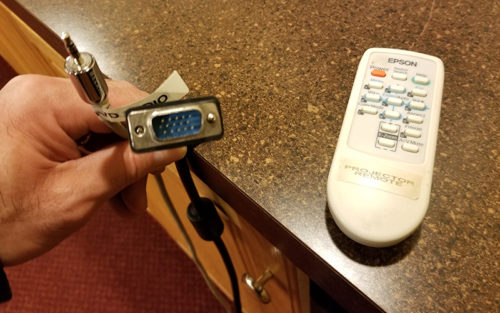

Chesebro Cables & Remote

  • The remote and cables are in the cabinet near the front of the room. The amp to control audio is also in this cabinet.
  • Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
  • Plug VGA cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop. Press Computer on the projector remote.
  • There is an HDMI cable on a strap in the coat closet. Plug this into the wall jack, and into your laptop. Select HDMI on the projector remote.
  • Turn off the projector by pressing the power button on the remote twice.

– top of page –

Farrington Room

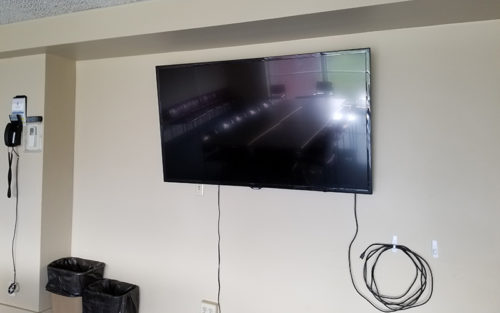

Farrington Room

Screen: Samsung Smart TV

Controller: Samsung TV remote

Connections: HDMI

Installed media players: none

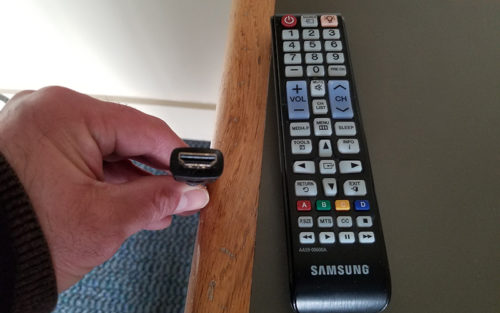

Farrington Cable & Remote

  • There is no adapter in this room so be sure to determine what type you need in advance (Apple dongle, DisplayPort, etc.).
  • Plug HDMI cable into the laptop or appropriate adapter.
  • Turn TV on with the remote.

Farrington Room-Sources

  • Press SOURCE on the remote. Choose HDMI1/DVI from the Source List to select the attached cable.¬†
  • HDMI cable should send audio from the laptop as well. Control volume with the TV remote.
  • Turn TV off with the remote.

– top of page –

Campbell 101 – Hutman Studio

Screen: front of room

Projector: Christie

Controller: Christie projector remote / Crestron DMPS300C

Sound: Crown amp, ceiling mounted speakers

Connections: VGA (HDMI available)

Installed media players: CD/iPod Dock

– top of page –

Campbell 102 – Fitness Center

Controller: Crestron DMPS300C

Sound: Crown amps, ceiling mounted speakers

Installed media players: AM/FM and Internet Radio tuners, CD/iPod Dock

– top of page –

Media Services provides consultation, design, installation and maintenance services for the College classrooms, meeting rooms, and other learning environments.

Details on these services are available by calling Media Services at 431-4176 or emailing
