Johnstone Science Center

Classroom Technology in Johnstone Science Center


Johnstone 105

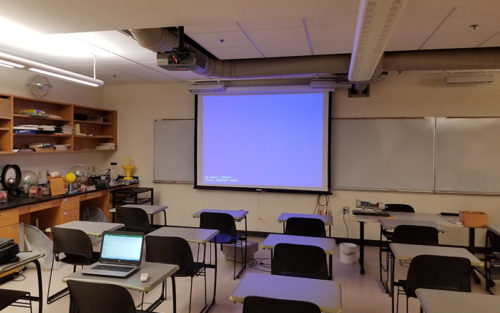

Johnstone 105

Screen: front of room

Projector: Epson Powerlite 821p

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA

Installed media players: none

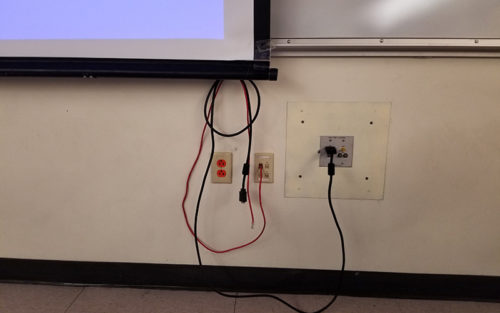

Johnstone 105-Cables

  • Turn the projector on by pressing the power button on the Epson remote once (orange button, top left of remote).
  • Plug the VGA cable into the laptop.
  • If needed, plug the red ethernet cable into the laptop for fast internet/network access.
  • Turn off the projector by pressing the power button on the remote twice. The power button will be blinking orange while it is cooling down. It will beep twice when it is completely powered off.

– top of page –

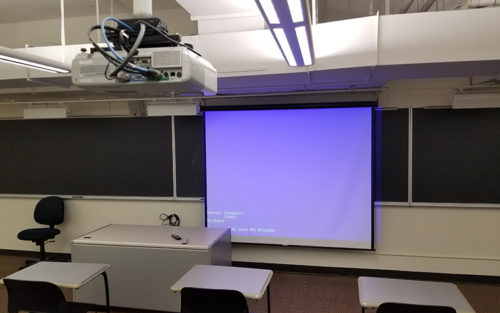

Johnstone 144

Johnstone 144

Screen: front of classroom

Projector: Epson Powerlite 83+

Controller: Epson remote

Sound: Onkyo amp, wall mounted speakers

Connections: VGA

Installed media players: DVD/VCR

Johnstone 144-Sound

  • When the projector is off, the power light will be solid orange. When you turn the projector on, it will beep once and the power light will be blinking green. Once it is solid green, it will be fully warmed up.
  • Turn the projector on by pressing the power button on the Epson remote once (blue button, top left of remote).
  • Plug VGA cable into the laptop. If using audio, plug the separate audio jack into the headphone port on the laptop. Press “Computer” on the Epson remote to change the source to the laptop.
  • The LG DVD/VCR is located in the rack. Press “Video” on the Epson remote to change the source to DVD. Use the LG remote to play, pause, fast forward, etc.
  • The Onkyo amp in the rack controls the audio. Set it on LINE 1/DVD for audio from the DVD player. Set it on LAPTOP (LINE 2) for audio from the laptop. The big knob controls the volume.
  • Turn off the projector by pressing the power button on the remote twice. The power button will be blinking orange and it will beep twice.

– top of page –

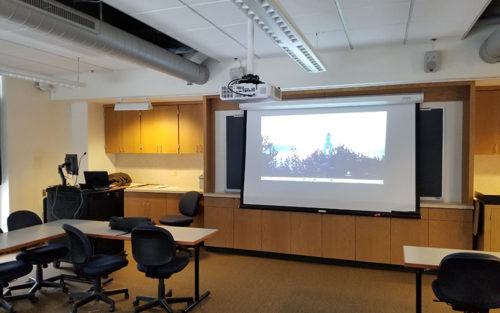

Johnstone 201

Johnstone 201

Screen: front of classroom

Projector: Christie LX41

Controller: Crestron DMPS200 / touch screen on lectern

Sound: Crestron controller, wall mounted speakers

Connections: VGA, HDMI

Installed media players: DVD/VCR, desktop computer

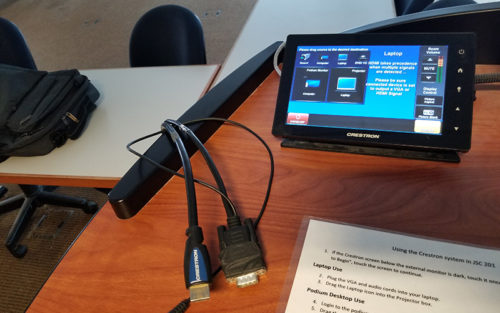

Johnstone 201 Controls

  • If the Crestron screen below the external monitor is dark, touch it once.  When you see “Touch Screen to Begin”, touch the screen again to continue.
  • Plug the VGA and audio cables, or the HDMI cable into your laptop. Drag the Laptop icon into the Projector box. FOR BEST RESULTS, use the HDMI cable whenever possible.
  • Or login to the podium desktop computer using your Hartwick username and password. Drag the Computer icon into the Projector box.
  • The volume coming through the speakers is controlled by the Room Volume control located on the right of the Crestron touch screen.
  • To shut down the projection system, press the SYSTEM OFF button on the lower left corner of the touch screen.

– top of page –

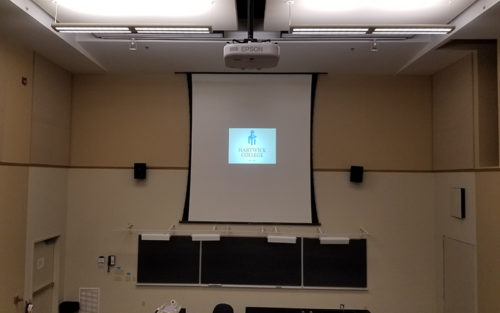

Johnstone 202 (Lecture Hall)

Johnstone 202

Screen: front of classroom

Projector: Epson Powerlite 4650

Controller: Extron Switcher / Epson remote

Sound: Crown amp, wall mounted speakers

Connections: VGA

Installed media players: DVD/VCR, document camera

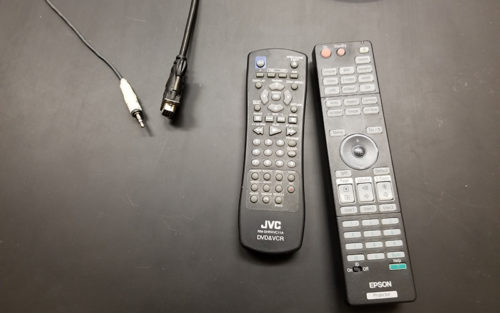

Johnstone 202 Cables

  • Turn projector on by pressing the On button on the remote once (orange button, top left of remote).
  • Plug the VGA cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop.

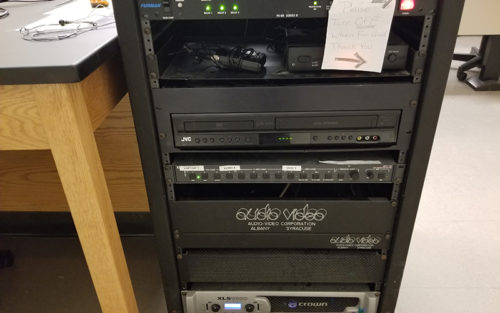

Johnstone 202 Controls

  • Press the power button on the top right of the rack.
  • Select LAPTOP 1 (your laptop), ELMO 4 (document camera) or DVD 1 (JVC DVD/VCR) to select the input.
  • Adjust the volume with the PROGRAM AUDIO knob.
  • If there is still no audio, be sure the amp in the bottom of the rack is on. The power button is on the bottom right corner and should be solid blue.
  • When are finished, turn the rack power button off (top right).
  • Turn off the projector by pressing the Standby button (top middle) on the Epson remote once. You will hear it beep twice.

– top of page –

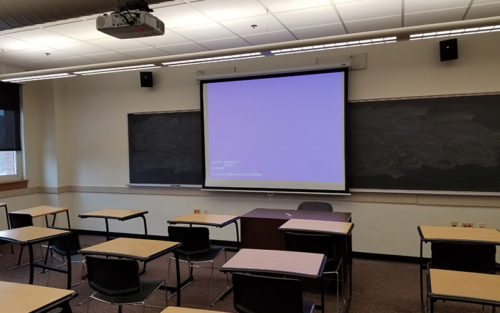

Johnstone 205

Johnstone 205

Screen: front of classroom

Projector: Epson Powerlite 93+

Controller: Epson projector remote

Sound: Teac amp, wall mounted speakers

Connections: VGA (HDMI available on request)

Installed media players: DVD/VCR (not connected)

Johnstone 205 Controls

  • Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
  • Plug VGA cable into the laptop. If using audio, plug the audio jack into the headphone port on the laptop.
  • The amp in the rack controls the audio.
  • Turn off the projector by pressing the power button on the remote twice. It will beep twice after it cools down.

– top of page –

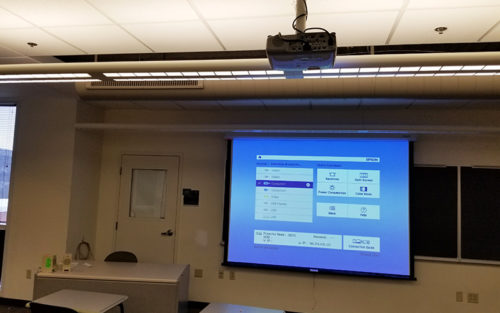

Johnstone 215

Johnstone 215

Screen: front of classroom

Projector: Epson Powerlite 107

Controller: Epson remote

Sound: no installed speakers

Connections: VGA (HDMI available)

Installed media players: none

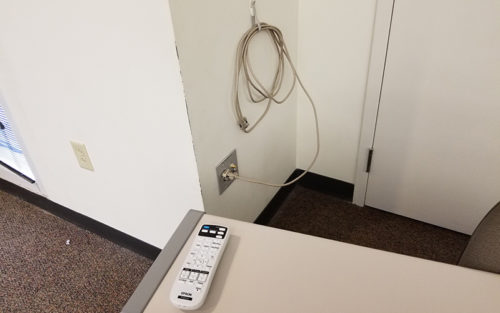

Johnstone 215 Controls

  • Turn projector on by pressing the power button on the remote once (blue button, top left of remote).
  • Plug VGA cable into the laptop.
  • There are computer speakers on the desk if you need audio support.
  • Turn off the projector by pressing the power button on the remote twice.

– top of page –


Johnstone 218

Screen: front of classroom

Projector: Epson Powerlite 93+

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA

Installed media players: none

Johnstone 205 Controls

  • Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
  • Plug VGA cable into the laptop.
  • Turn off the projector by pressing the power button on the remote twice. It will beep twice after it cools down.

– top of page –


Johnstone 225

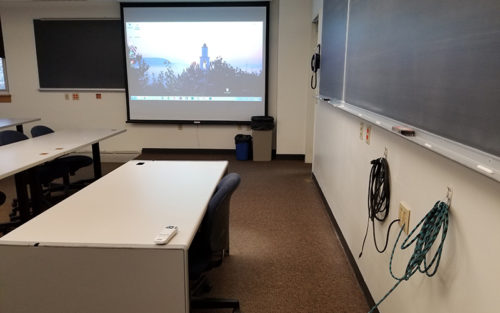

Johnstone 225

Screen: front of classroom

Projector: Epson Powerlite 107

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA, HDMI, iProjection*

Installed media players: none

Johnstone 225 Controls

  • Turn projector on by pressing the power button on the remote once (blue button, top left of remote).
  • Plug VGA cable into the laptop. Press Computer on the Epson remote to select this input.
  • Or plug HDMI cable into laptop. Press HDMI/Video on the Epson remote to select this input.
  • Turn off the projector by pressing the power button on the remote twice.

– top of page –


Johnstone 226

Johnstone 226

Screen: front of classroom

Projector: Epson Powerlite 965H

Controller: Epson projector remote

Sound: Teac amp, wall mounted speakers

Connections: VGA (HDMI available)

Installed media players: DVD/VCR

– top of page –


Johnstone 301

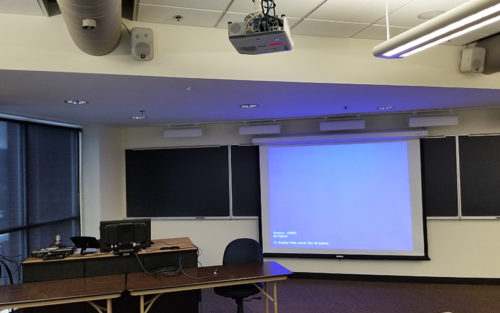

Johnstone 301

Screen: front of classroom

Projector: Epson Powerlite 965H

Controller: Epson projector remote

Sound: Onkyo amp, wall/ceiling mounted speakers

Connections: VGA, HDMI, iProjection*

Installed media players: DVD/VCR

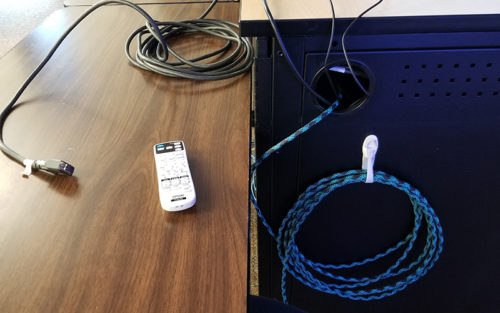

Johnstone 301 Cables

  • The Crestron touch screen only controls the 2 TV’s on the side wall.
  • To turn the projector on, press the power button on the Epson remote once (blue button, top left of remote).
  • Plug VGA cable into the laptop. Press Computer on the Epson remote to select this input.
  • Or plug HDMI cable into laptop. Press HDMI/Video on the Epson remote to select this input.

Johnstone 301 Sound

  • To use the DVD/VCR in the rack, press the Video button (on the Epson remote) several times until the Source says “Video”. It will cycle through HDMI 1, HDMI 2, and S-Video before it gets there.
  • Audio is controlled by the amp in the rack. There is a headphone jack to plug into the laptop – press the COMP button on the amp to use this. For DVD/VCR audio, press the DVD button on the amp. The big knob on the right side controls the volume.
  • Turn off the projector by pressing the power button on the remote twice.

– top of page –


Johnstone 302

Screen: Vizio TV

Controller: Vizio TV remote

Connections: HDMI

Installed media players: none

– top of page –


Johnstone 303

Johnstone 303

Screen: side of classroom

Projector: Epson Powerlite S9

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA

Installed media players: none

– top of page –


Johnstone 308

Johnstone 308

Screen: front of classroom

Projector: Epson Powerlite 99W

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA, HDMI

Installed media players: none

– top of page –




Johnstone 309

Johnstone 309

Screen: front of classroom

Projector: Epson Powerlite 83+

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA

Installed media players: none

Johnstone 205 Controls

  • Plug VGA cable into the laptop. Plug the headphone cable into the laptop’s headphone jack.
  • Turn projector on by pressing the power button on the remote once (orange button, top left).
  • Speaker is built into the projector. Use the projector remote to control the volume.
  • Turn off the projector by pressing the power button on the remote twice. It will beep twice after it cools down.

– top of page –


Johnstone 311

Johnstone 311

Screen: front of classroom

Projector: Epson Powerlite 93+

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA (HDMI available on request)

Installed media players: none

Johnstone 205 Controls

  • Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
  • Plug VGA cable into the laptop.
  • Turn off the projector by pressing the power button on the remote twice. It will beep twice after it cools down.

– top of page –


Johnstone 314

Screen: front of classroom

Projector: Epson Powerlite 93+

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA (HDMI available on request)

Installed media players: none

Johnstone 205 Controls

  • Turn projector on by pressing the power button on the remote once (orange button, top left of remote).
  • Plug VGA cable into the laptop.
  • Turn off the projector by pressing the power button on the remote twice. It will beep twice after it cools down.

– top of page –


Johnstone 319 (CISC Clubhouse)

Screen: front of classroom

Projector: Epson VS330

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA (HDMI available on request)

Installed media players: none


Johnstone 401 (Nursing Lab)

Screen: Samsung TV

Controller: Samsung TV Remote

Connections: VGA

Installed media players: none

– top of page –


Johnstone 412

Johnstone 412

Screen: front of classroom

Projector: Epson Powerlite 81p

Controller: Epson projector remote

Sound: no installed speakers

Connections: VGA

Installed media players: none

– top of page –


Media Services provides consultation, design, installation and maintenance services for the College classrooms, meeting rooms, and other learning environments.

* Wireless projection from laptops, phones and tablets is now available in several rooms. There are some limitations, but it does offer additional options for classroom presentation. If you would like to test out the Epson iProjection app, please email spiwakc@hartwick.edu.

Details on these services are available by calling Media Services at 431-4176 or emailing spiwakc@hartwick.edu.
